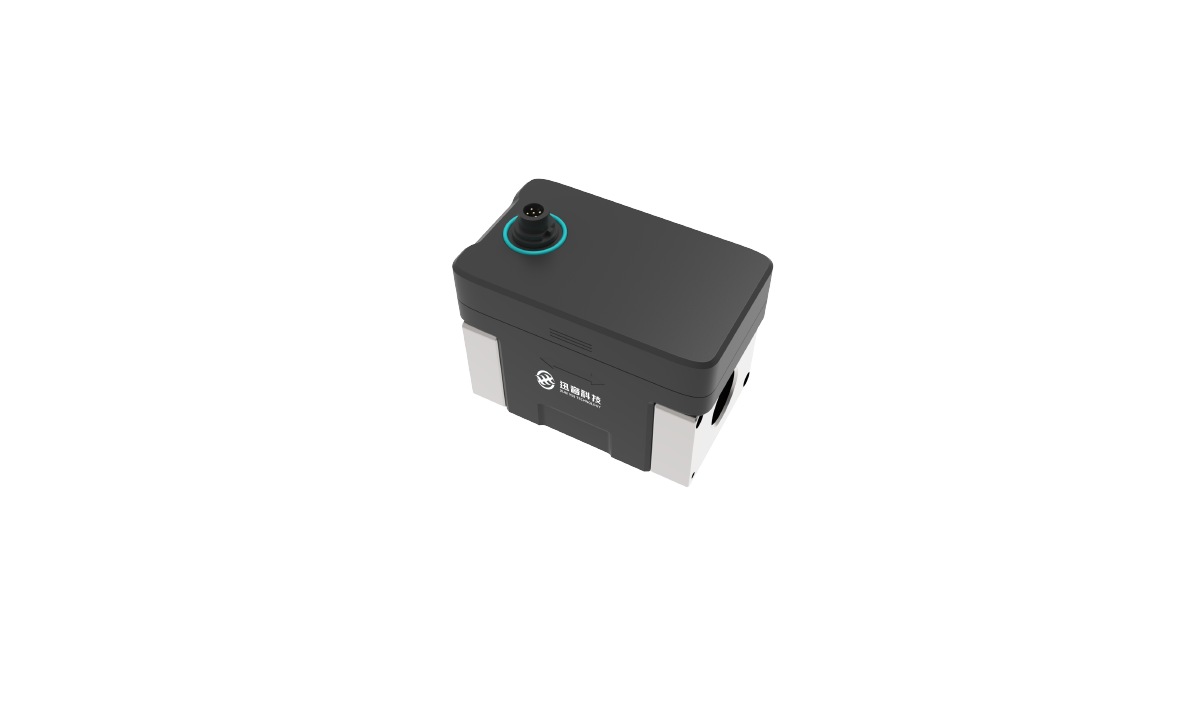

TG series In-line Ultrasonic Flow Sensor
The TG series in-line ultrasonic flow sensor features a compact size and can measure and output data without the need for an external circuit system.
The sensor/flow meter can be easily integrated into the customer's existing fluid system through fluid connectors, with an accuracy of up to ±2%. It boasts advantages such as high precision, high sensitivity, and high reliability.
The internal structure of the sensor/flow meter consists of a straight-through pipeline without moving parts or dead corners, making it resistant to wear and scaling, easy to clean, and with minimal pressure loss.
In comparison to clamp-on sensors/flow meters, inline sensors/flow meters do not depend on the material and size accuracy of existing pipelines for calibration, allowing measurement to begin as soon as they are integrated into the system. They are widely used in applications such as food and beverage industry, filling and spraying, lab experimental flow systems, and industrial automation systems.
Product Features
- High precision and stability
- Bi-directional measurement,calculate fluid volume, and also provide bubble detection, quantitative filling, and flow switch functions
- Circuit integrated inside the sensor/flow meter, no need for external computing or processing systems, compact size
- Unobstructed, non-directional, no dead corners, minimal fluid pressure loss
- Provides standard output methods for seamless integration with customer systems
Applications
- Food and beverage processing industry: such as milk, fruit juice, and beer production processes
- Industrial automation: filling equipment, spraying equipment, cooling systems, lubrication systems
- New energy industry: such as CMP, cleaning systems, cooling systems
- Scientific experimental systems
- Water treatment and wastewater treatment systems
Performance Parameters
Measurable liquids |
Water, beverages, gasoline, paints, chemicals, etc., containing no or few solid particles |
Precision |
2% and adding zero drift |
Calibration |
Factory default calibration: 22±3°C, water |
housing materials |
Plastics |
Input Voltage |
12-30 VDC |
Current consumption |
Less than 20mA (without external load) |
Interface |
8 pole push-pull plug |
Operating Temperature |
0°C to 60°C |
Storage temperature |
-20°C to 70°C |
Shield |
Wire grounding |
Inputs and outputs |
|
Accessories |
8-core shielded cable, default length 1.5 m |
