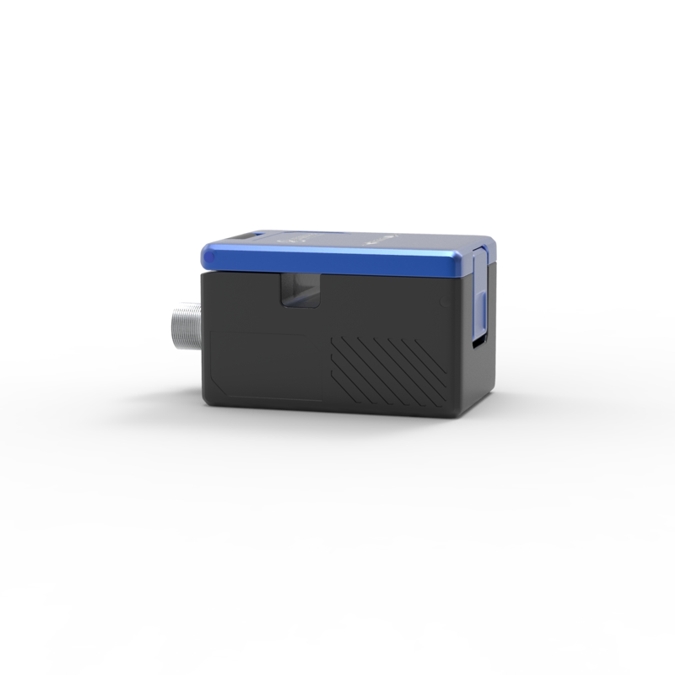

CG Series Clamp-on Ultrasonic Flow Sensors
CG series ultrasonic clamp-on flow sensors are compact in size, and can measure flow and output results without external circuitry.

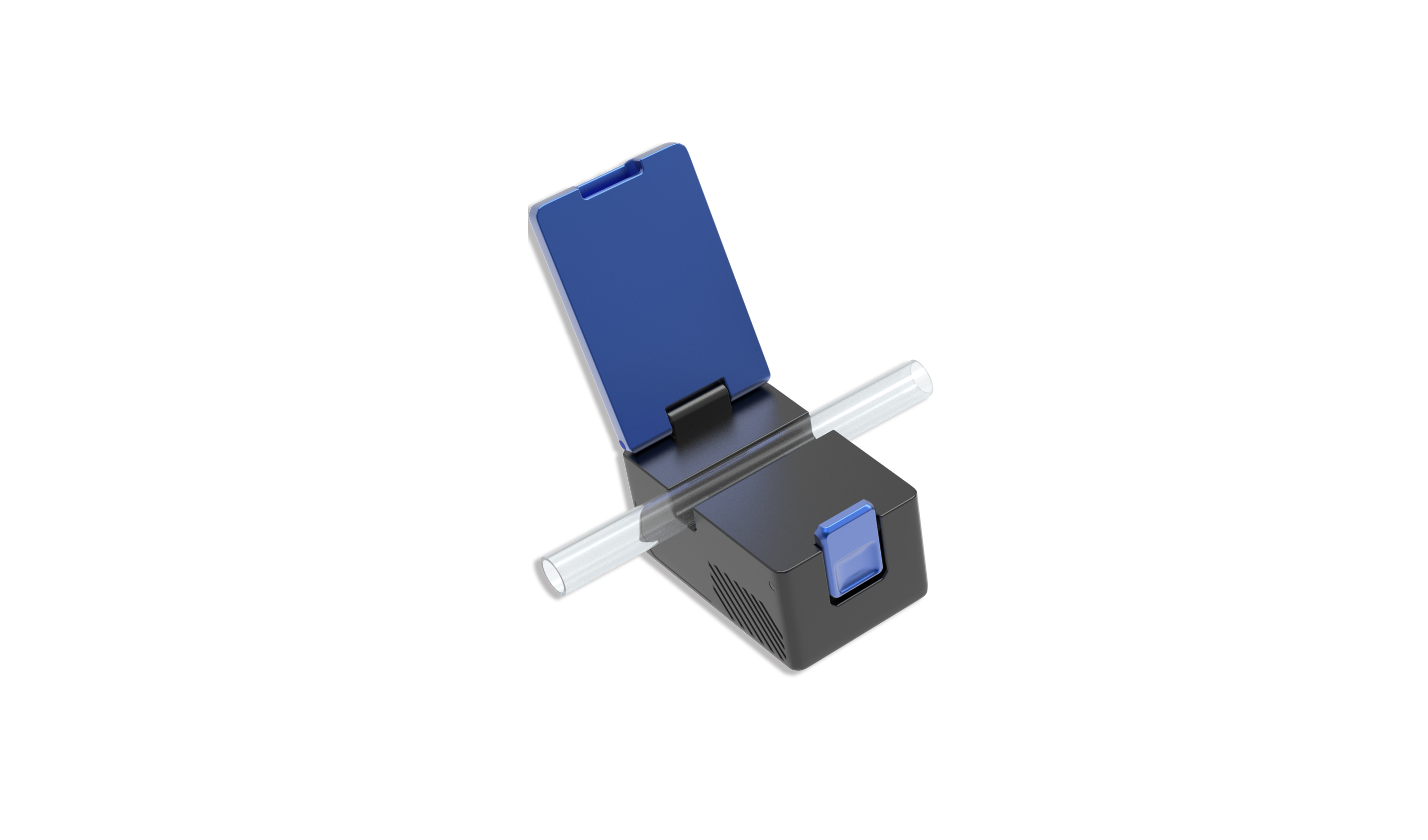

The sensors can be directly clamped on flexible plastic tubing to accurately measure the liquid flow rate and detect air bubbles. The sensors are not in direct contact with the liquid in the tubing and will not contaminate the liquid. They are especially suitable for applications where strict hygiene is required, such as biopharmaceutical processes, medical equipment, and semiconductor manufacturing.
Features
- High precision and high stability
- Non-invasive measurement, no direct contact with liquid, hygienic safety
- Bi-directional measurement, can calculate fluid volume and detect air bubble
- Circuit embedded in the sensor and no external circuit required; compact in size
- No blockage, no dead area, low fluid pressure loss
- Provide standard output methods to seamlessly integrate with customer systems
- Customized calibration of plastic tubing material, size, temperature, and liquid type
Applications
- Medical devices such as hemodialysis machines, organ transplantation systems, heart-lung machines, and blood pump
- Biopharmaceutical processes and equipment, such as fermenters, cell culture equipment, vaccine production, tangential flow filtration systems, and liquid chromatographs
- Fluid monitoring during semiconductor manufacturing, such as high-purity water and corrosive chemicals
- Food & beverage processing, such as milk, juice, and beer production
- Filling equipment, spraying equipment, cooling system, and lubrication system
- Scientific experiment system
- Water treatment and wastewater treatment system
Standard Products and Tubing Size
|
Part # |
Flow Range |
Accuracy |
Tubing OD |
Tubing ID |
|
CG-016N-B |
Default:1000 mL/min Max: 2000 mL/min |
0-200mL/min: ±6mL/min 200-2000mL/min: ±3% |
5/32" (4mm) |
1/16" (1.6mm) |
|
4mm |
2mm |
|||
|
CG-019N-B |
Default:2000 mL/min Max: 4000 mL/min |
0-200mL/min: ±6mL/min 200-4000mL/min: ±3% |
3/16" (4.8mm) |
1/16" (1.6mm) |
|
5mm |
3mm |
|||
|
CG-025N-B |
Default: 3000 mL/min Max:6000 mL/min |
0-300mL/min: ±9mL/min 300-6000mL/min: ±3% |
1/4" (6.4mm) |
1/8" (3.2mm) |
|
7mm |
5mm |
|||
|
CG-038N-B |
Default: 4000mL/min Max:8000 mL/min |
0-500mL/min: ±15mL/min 500-8000mL/min: ±3% |
3/8" (9.5mm) |
1/4" (6.4mm) |
|
9mm |
6mm |
|||
|
CG-044N-B |
Default: 4500mL/min Max:9000 mL/min |
0-600mL/min: ±18mL/min 600-9000mL/min: ±3% |
7/16" (11.1mm) |
5/16" (7.9mm) |
|
11mm |
8mm |
|||
|
CG-050N-B |
Default: 5000 mL/min Max:10000 mL/min |
0-700mL/min: ±21mL/min 700-10000mL/min: ±3% |
1/2" (12.7mm) |
3/8" (9.5mm) |
|
1/2" (12.7mm) |
1/4" (6.4mm) |
|||
|
CG-056N-B |
Default: 6000 mL/min Max: 12000 mL/min |
0-800mL/min: ±24mL/min 800-12000mL/min: ±3% |
9/16" (14.3mm) |
3/8" (9.5mm) |
|
14mm |
10mm |
|||
|
CG-063N-B |
Default: 7000 mL/min Max:14000 mL/min |
0-900mL/min: ±27mL/min 900-14000mL/min: ±3% |
5/8" (15.9mm) |
3/8" (9.5mm) |
|
16mm |
10mm |
|||
|
CG-075N-B |
Default: 10000 mL/min |
0-1200mL/min: ±36mL/min 1200-18000mL/min: ±3% |
3/4" (19.1mm) |
1/2" (12.7mm) |
|
19mm |
14mm |
|||
|
CG-100N-B |
Default:25000 mL/min Max: 50000 mL/min |
0-2000mL/min: ±60mL/min 2000-50000mL/min: ±3% |
1" (25.4mm) |
3/4" (19.1mm) |
|
1" (25.4mm) |
5/8" (15.9mm) |
|||
|
CG-125N-B |
Default: 50000 mL/min |
0-8000mL/min: ±240mL/min 8000-100000mL/min: ±3% |
1 1/4" (31.8mm) |
3/4" (19.1mm) |
|
1 1/4" (31.8mm) |
1" (25.4mm) |
Specifications
|
Liquid |
Water, blood, drinks, oil, paint, etc, without or not many solid particles |
|
Accuracy |
3% plus zero offset |
|
Calibration |
Default：22±3 °C, water |
|
Tubing material |
PVC, Silicone, PFA, PE, PUR, etc., flexible plastic tubing with smooth inner and outer surfaces |
|
Housing material |
Plastic（Or stainless steel/aluminium） |
|
Input voltage |
12-30 VDC |
|
Current |
Less than 20mA (no external load) |
|
Connector |
8-pin push-pull plug |
|
Fluid temperature |
0°C to 60°C |
|
Storage temperature |
-20°C to 70°C |
|
Shielding |
Grounded |
|
Input and output |
|
|
Accessory |
8-wire shielded cable, default length 1.5m |
|
Optional accessories |
|
